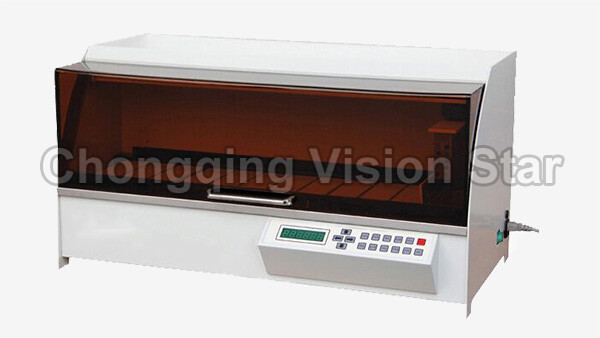

LTP1A Automated Tissue Processor Mini-type Linear Type

$0.00

Model: LTP1A Automated Tissue Processor (Mini-type) (Linear Type)

Temperature Range: RT – 80℃
Dripping Time: Approximately 30 s
Frequency of Agitation: 2 times/minute
Tissue Protection Cup: at the 7th station

LTP1A Automated Tissue Processor Mini-type Linear Type

Features:

1. APS-coated, streamline-design, sturdy housing with high resistance to corrosion
2. Economical, reagent saving, practical design with small footprint and low cost
3. Two sets of operating programs and two sets of time-extending programs; all built-in programs have memory function
4. Single-chip computer control technology allows a complete set of functions
5. Well-sealed plexiglass cover with gas-effluxion mechanism, environmentally friendly and safe
6. Large-capacity reagent cup: more than 40 tissue specimens can be processed simultaneously
7. Not affected by short blackouts or power outages during operation
8. Manual adjustment can be conducted anytime during the programmed automatic operation; afterwards, the system automatically enters the programmed operation
9. Internal dry heating mechanism with high-precision temperature control
10. Two-dimensional, flexible transmission system, low noise, wear-resistant
11. High-precision photoelectric positioning control system to ensure reliable operation and precise positioning
12. Fully intelligent design, enabling timely determination and recovery from an abnormal event
13. Approximately 40 tissue samples can be processed at the same time

Technical Data
Number of Cups	12 (9 for reagents, 3 for paraffin)
Capacity of Each Cup	700 ml
Length of Processing Time in the Cup	Any length between 0 and 99 hours for the first cup
Length of Processing Time in the Cup	Any length between 0 and 24 hours for the other cups
Temperature Range	RT – 80℃
Dripping Time	Approximately 30s
Frequency of Agitation	2 times/minute
Tissue Protection Cup	at the 7th station
Working Voltage	AC220V±10% 50Hz (standard model) AC110V±10% 60Hz
Power Requirements	500 W
Heating Control	heating automatically begins when the tissue enters the 2nd cup, thus avoiding unnecessary energy waste
Dimensions	795×435×415 mm (W×D×H)
Weight	50kg
