Description

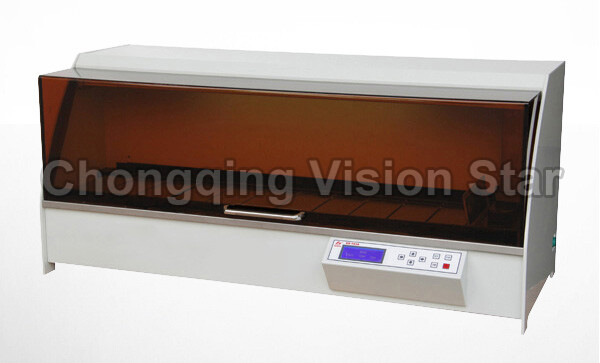

LTP3A Automatic Tissue Processor Linear Type
Features:
1. Fully intelligent design, enabling timely automatic determination and recovery from an abnormal event
2. High-quality blue-colored LCD screen operated with two optional programs offers a clear and reliable display
3. Manual adjustment can be conducted anytime during the programmed automatic operation; afterwards, the system automatically enters the programmed operation
4. Green inner-cycling air purification system to efficiently adsorb, and remove, poisonous gas
5. Imported high-quality parts, smooth operation, low noise, ergonomic design
6. Approximately 60 tissue samples can be processed at the same time
Technical Data | |
Number of Cups | 12 (nine cups for reagents and three cups for paraffin) |
Capacity of Each Cup | 1000 ml |
Length of Processing Time | Adjustable within 0-99 hours for the 1st station and within 0-24 hours for other stations |
Heating Mechanism | Internal dry heating automatically begins when the tissue enters the 2nd cup, thus avoiding unnecessary energy waste |
Temperature Range of Paraffin Cup | adjustable within RT – 99°; dual protection |
Temperature Control Precision | ±1℃ |
Frequency of Agitation | 2 times/minute |
Dripping Time | Adjustable within 10-60 s; shake/drip above cup |
Acceptable Temperature Range of Operation Environment | 0 ~ 40℃ |
Tissue Protection Cup | at the 7th station |
Working Voltage | AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz |
Power | 500 W |
Heating Control | heating automatically begins when the tissue enters the 2nd cup, thus avoiding unnecessary energy waste |
Dimensions | 1010×420×450 mm (W×D×H) |
Weight | 67 kg |
Battery backup | with more than 6 hours of continual running power |
