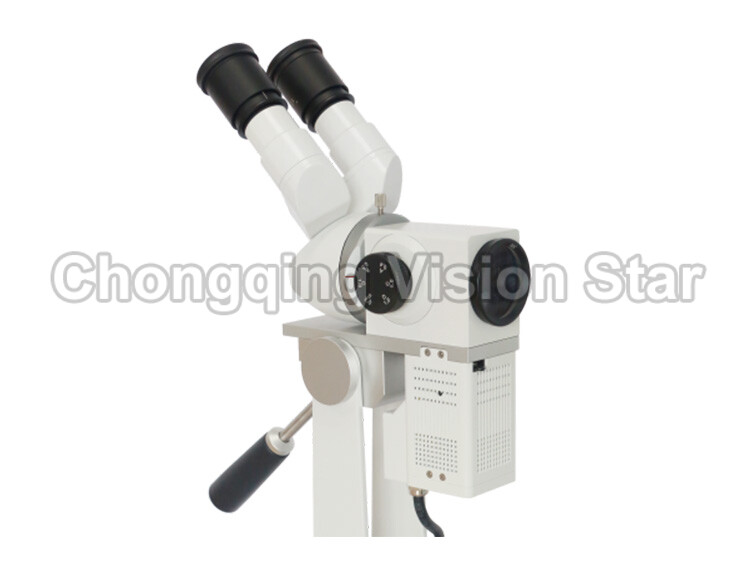

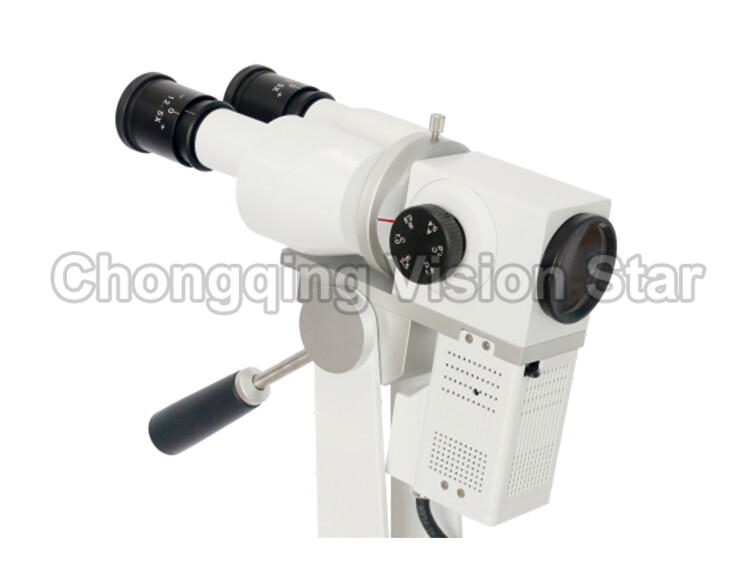

OCP199 Colposcope
$0.00
OCP199 Colposcope
Feature:
Vaginal microscope is a precision optical instrument specially developed for gynecological examination and diagnosis. Due to the magnification of the instrument, the instrument can clearly find vaginal lesions that cannot be observed with the naked eye, which greatly improves the accuracy of diagnosis
Technical Data |
|
MICROSCOPE |
|
Binoculars |
Straight f’=160 mm |
Objective |
f’=300 mm |
Eyepiece |
12.5x, high-eyepoint, wide angular, pupil exit distance 21mm |
Diopter adjustment |
-5D to + 5D |
Magnification changer |
5 steps: 0.4x, 0.6x, 1x, 1.6x, 2.5x |
Total magnifications |
2.8x, 4x, 7x, 11.5x, 17x |
Visual field |
80 mm-12.5 mm |
Interpupillary distance |
55 mm to 75 mm |
Focusing |
Micro-range of 40mm Manual |
Working distance |
295 mm |
ILLUMINATION |
|
Type |
Coaxial illumination by optical light-guide system |
Cold light source |
LED lamp, 3V/30W |
Illumination control |
3 steps |
Field of illumination |
80 mm |
Power supply |
AC 110V-220V |
Light intensity |
≧50,000 LUX |
Filter |
Green |
ARM, STAND |
|
Type |
Floor-stand type |
Rotation angle |
360° |
Elevation stroke |
170 mm |
Height |
1000-1170 mm |
Base size |
600mm |
Weight |
11kgs |
