OPM900N Bedside Patient Monitor

$0.00

Model: OPM900N
Quantity:

Purchase professional medical equipment for clinic, hospital, or become our distributor. Send an inquiry or contact us now.

Send Inquiry

Chat on WhatsApp: +8613618377608

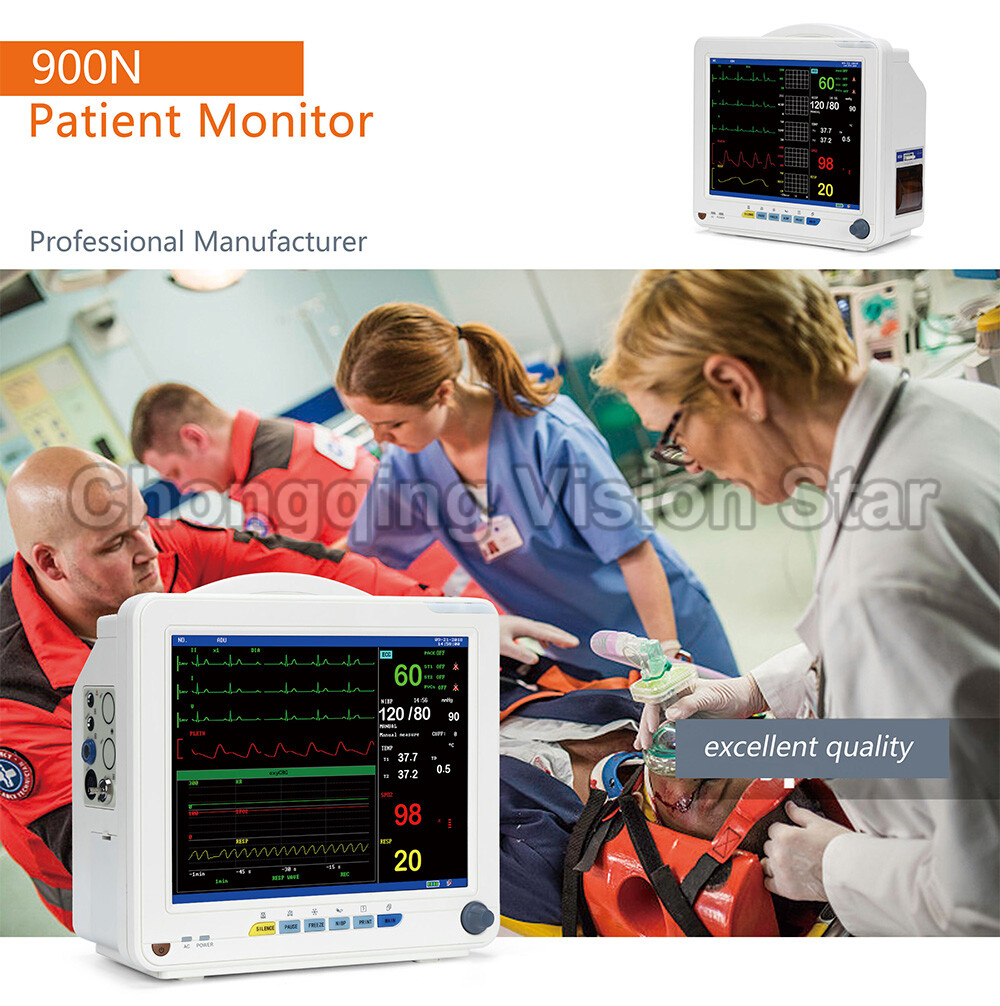

OPM900N Bedside Patient Monitor

Feature:

* 12.1″ TFT color LCD, 800*600dpi

* Standard 5 para: ECG, SpO2, NiBP, TEMP, RESP

* Fanless design, quiet, energy-saving and clean.

* With standard interface, OxyCRG, trend chard, big character interface and view bed.

* Operation mode: keys and buttons.

* Display up to 8-channel waveform on one screen.

* NIBP measurement mode: Manual/AUTO/Continuous, storage for 1000-group NIBP data.

* Review for 71 alarm events of all parameters and 60 arrhythmia alarm events.

* Drug concentration calculation and titration table functions.

* Print trend table data with one-key.

* Connect to Central Monitoring System WiFi or wired mode.

* AC/DC, built-in rechargeable lithium battery achieve uninterrupted monitoring.

* Anti-high frequency surgical unit, defibrillation-proof(special leads are necessary).

Standard Parameters

ECG

Lead mode

3/5-lead (R, L, F, N, C)

Lead selection

I, II, III, AVR, AVL, AVF, V

Waveform

3 and 7 channel selectable

Gain selection

0.5mm/mv, 1mm/mv, 2mm/mv

Sweep speed

12. 5mm/s, 25mm/s, 50mm/s

Heart rate range



Adult: 15~300bpm, Neonate/ pediatric: 15~350bpm

Accuracy: +1bpm or +1%, whichever is greater; Resolution: 1bpm

Filter

Surgery mode:1~20Hz, Monitor model: 0.5~40Hz, Diagnostic mode: 0.05~130Hz

Scaling signal

1mv, +3%

Protection

withstand 4000VAC/50 voltage isolation against electrosurgical interference and defibrillation

Alarm range

15~350bpm

S-T segment detection



Measurement range: 2.0mV~+2.0mV, Alarm Range: -2.0mV~ +2.0mV

Accuracy: -0.8mV ~+0.8Mv, Error: +0.02Mv, Arrhythmia analysis: YES

SPO2

Measurement range

0~100%

Resolution

1%

Accuracy

+2%(70-100%); 0-69% unspecified

Alarm range

0~100%

Pluse Rate

Range: 20~300bpm, Resolution: 1bpm, Error: +1bpm or +2%, whichever is greater

NIBP



Method

Digital Automatic oscillometric

Operation mode

Manual/ Automatic/continuous

Auto measurement time

Adjustable (1~480 min)

Measurement Unit

mmHg/Kpa selectable

Measurement types

Systolic, Diastolic, Mean

Measurement tange



Range of Systolic pressure:

Adult: 40~270mmHg, Pediatric: 40~ 220mmHg, Neonate: 40~ 135mmHg

Range of mean pressure:

Adult: 20~235mmHg, Pediatric: 20~165mmHg, Neonate: 20~110mmHg

Range of diastolic pressure:

Adult: 10~215mmHg, Pediatric: 10~150mmHg, Neonate : 10~100mmHg

Over-pressure protection

Double safety protection

Resolution

1 mmHg

Alarm

Systolic, Diastolic, Mean

RESPIRATION



Method

Thoracic impedance

Measurement range

Adult: 7~120rpm, Neonate/Pediatric: 7~150rpm

Apnea alarm

YES, 10~40s

Resolution

1rpm

Accuracy

+2rpm

TEMP



Compatible probe

YSI or CYF

Measurement range

5~50°C

Resolution

0.1°C

Accuracy

+0.1°C

Refreshing time

about 1

Average measuring time

<10s

Optional Parameters

RECORDER

Recorder

Plethysmogram caveform: 2 channels

Record mode

Manual, on alarm, time-defined

Recording width

50mm

Printing speed

50mm/s

Recording type

Frozen waveform record, NIBP recall record, Trend table record, Alarm record

Fixed -time record

IBP (invasive blood pressure)

IBP Waveform

2-Channel , Max 8 channels

Measurement

Range: -50~+350mmHg, Resolution: 1mmHg , Unit: mmHg, kPa

Accuracy: Dynamc: ±4mmHg or 4%, whichever is greater

Sensitivity of transducer

5 uV/V/mmHg, ±2%

Impedance of transducer

300~3000 Ohm

Transducer sites

Arterial Pressure(ART), Pulmonary Artery Pressure(PA), Left Atrium Pressure(LAP), Right Atrium Pressure(RAP), Central Venous Pressure(CVP), Intracranial PRESSURE(ICP)

P1/P2

Selection of measurement range

ART: 0~+ 350mmHg, PA: -10~+120mmHg, CVP/RAP/LAP/ICP: -10~+ 40mmHg ,

P1/P2: -50~+360mmHg
