TR-102A Ophthalmic Unit

$0.00

Model: TR-102A

TR-102A Ophthalmic Unit

Specifications：

TR-102A
Mechanical Parameters	Up/Down angle of swing arm	±30°
	Table size	840mmx405mm, 670mmx405mm
	Table rotational angle	90°
	Table sliding movement range	330mm
	Angle of rotation for chair	±60°
	Chair height adjustment range	460~600mm
	Loading for chair	150kgs
	Lifting height for pillow	≤150mm
	Backrest obliquity	90°~135°
Electrical Parameters	Input voltage	110V/220V AC 50Hz～60Hz
	Engine power	55W 220V AC
	Light	16W 110V/220V AV
	Fuse	5A 250V AC
	No load power	1W
	Pressure test	2KV
	Main wire	10A 250V
	Working mode	S1
	Working temperature	-10℃~ 40℃
	Relative humility	less than 90%

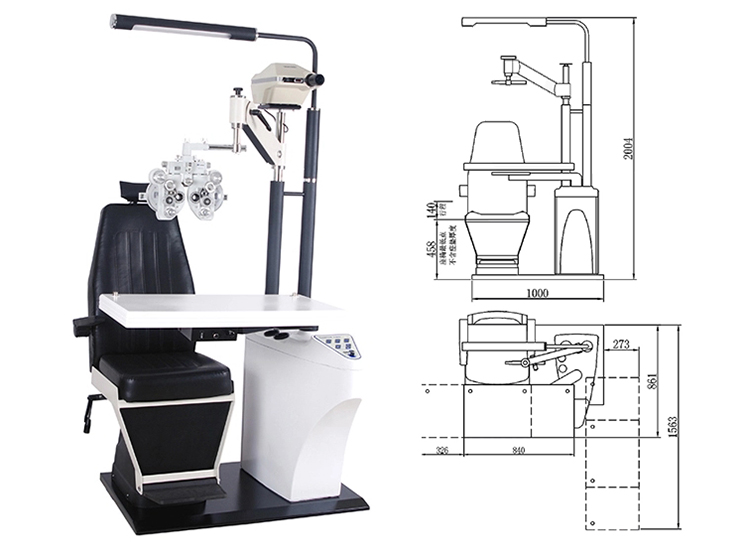

Installation Dimension	Figure size	1560mm1000mm2000mm
Installation Dimension	Weight	175kgs
