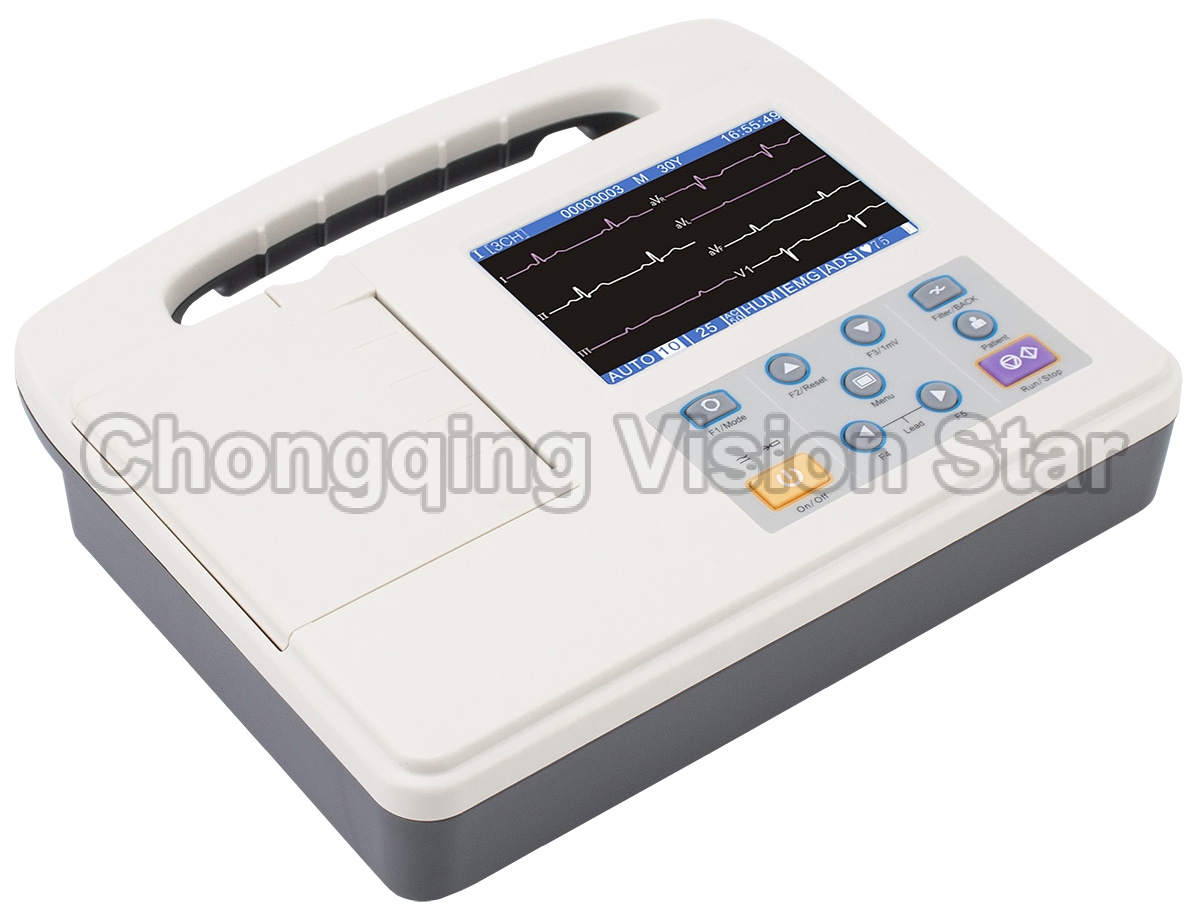

VEC2305B 3 Channel ECG

$0.00

Model: VEC2305B

VEC2305B 3 Channel ECG

Feature:
* Portable and delicate design, small size and light weight, easy to operate.
* 7 leads synchronous acquisition; High sampling rate.
* High accuracy digital filter, automatic baseline adjustment.
* Working modes: Manual, Automatic, R-R.
* 320×240 graphic 3.5 inch color LCD to simultaneously display ECG information.
* 250 patient cases storage and replay ( SD card storage is optional ).
* Rich menu settings. Detailed patient information record.
* Adapt to 110-230V, 50/60Hz power supply. Built-in rechargeable Li-ion battery. Charging time about 2.5 hours and continuous working time about 9 hours.
* USB / UART communication ports support USB storage, laser printing and PC ECG software(Optional).

Standard Configuration:


Patient Cable / Lead Wire(Banana Type)	Electrodes	Grounding Cable	Power Cable

Adapter	Paper Axis	Thermal Paper	Fuse

Optional Configuration:


Electrode Adapter	Disposible Electrodes	Conductive Gel

Carrying Bag	Carrying Case	Trolley

Technical Data
Lead	Standard 7 leads
Lead acquisition	Synchronously 7 leads acquisition
Work mode	Man / Auto / R-R
Filter	AC Filter: 50Hz / 60Hz; EMG Filter: 25Hz / 45Hz Anti-Drift Filter: 0.15Hz (adaptive)
CMRR	≥120dB ( with AC filter )
Input circuit	Floating; Protection circuit against defibrillator effect
Input impedance	≥50MΩ
Input circuit current	≤0.05μA
Patient current leakage	＜10μA
Calibrating voltage	1mV±2％
Voltage tolerance	≥±500mV
Time constant	≥3.2s
Frequency response	0.05～160Hz(-3db)
Noise level	＜15μVp-p
Inter-channel interference	≤0.5mm
Sensitivity	2.5, 5, 10, 20, 40, Auto ( mm/mV )
Recording mode	1ch+, 3ch, 3ch+
Paper speed	6.25, 12.5, 25, 50mm/s ( ±3％)
Recording paper	80mmx20m high resolution thermal roll paper
Display	800*480, 5 inch color LCD
Storage	250 patient cases storage ( Internal SD card is optional )
Communication port	USB, UART
Power supply	AC 110-230V(±10%), 50/60Hz (±1Hz) DC Rechargeable Li-ion battery, 14.4V, 2200mAh
Dimension/Weight	26021758mm, 1.7kgs

Packing List
Main Unit	1 set
Patient Cable	1pc.
Electrodes	1set ( 5 pcs. )
Power Cable	1pc.
Adapter	1pc.
Grounding Cable	1pc.
Fuse	2pcs.
Paper Axis	1pc.
Thermal Paper	1 roll ( 80mm x 20m )
Use Manual	1 copy

Package

Small

Carton

1 unit / carton

G.W.: 3.8kgs

N.W.: 3.1kgs

Size: 0.39mx0.34mx0.21m

Volume: 0.03CBM

Weight by Air: 5kgs

Weight by Express: 6kgs

Big

Carton

4 units / carton

G.W.: 3.8kgs

N.W.: 3.1kgs

Size: 0.39mx0.34mx0.21m

Volume: 0.03CBM

Weight by Air: 5kgs

Weight by Express: 6kgs
