VEC3A&VEC32A 3-channel ECG Machine

$0.00

Model: VEC3A&VEC32A
Quantity:

Purchase professional medical equipment for clinic, hospital, or become our distributor. Send an inquiry or contact us now.

Send Inquiry

Chat on WhatsApp: +8613618377608

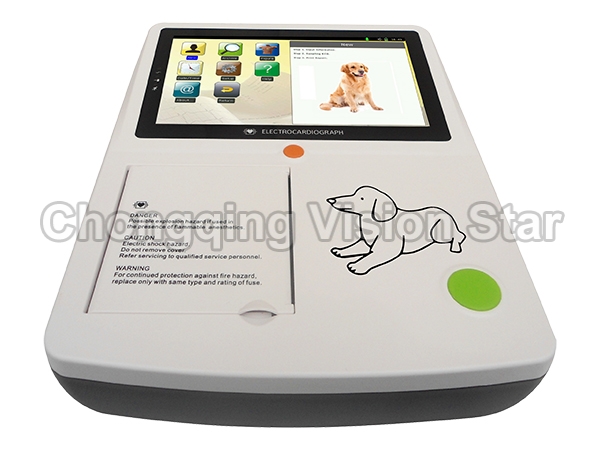

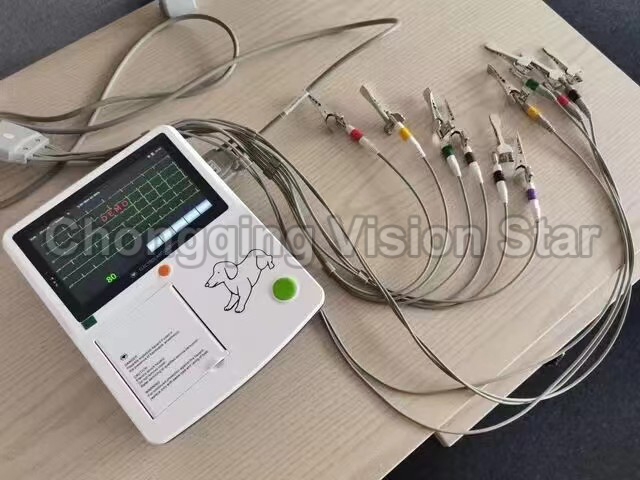

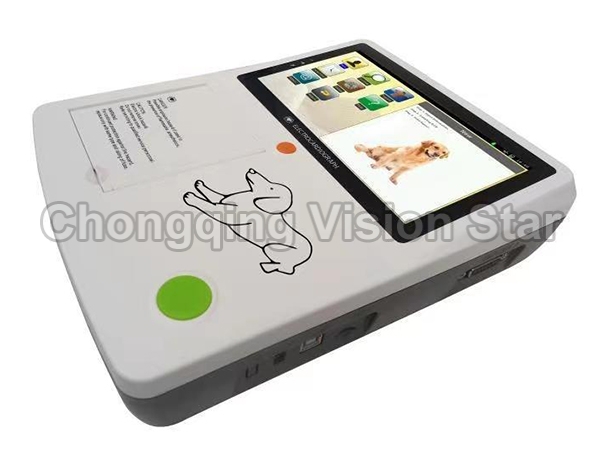

VEC3A & VEC32A 3-channel ECG Machine

  • Feature:
  • * 7/12 lead ECG synchronous sampling system.
  • * Thermal printer with 80mm print paper, synchronization print.
  • * 7″ color touch-screen, touch operation.
  • * Automatic measurement, calculation, analysis, waveform freezing.
  • * Support USB flash disk & SD memory.
  • * Data transmitting to PC via USB.
  • * Patient’s information can be input.
  • * Historical data can be reviewed and printed.
  • * Built-in rechargeable Li-ion battery, AC/DC power conversion.
  • * Sleep mode to save energy and extend TFT screen life.
  • * Support USB Keyboard/Mouse.
  • * Lead off & lack off paper detection function.
  • * 7 level printing thick can be chosen.
  • * Adapt to 110-230V, 50/60Hz AC power supply.

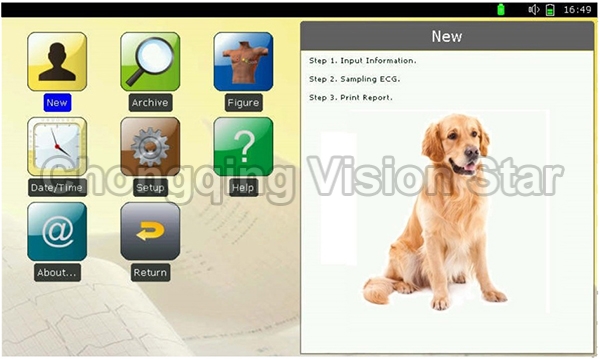

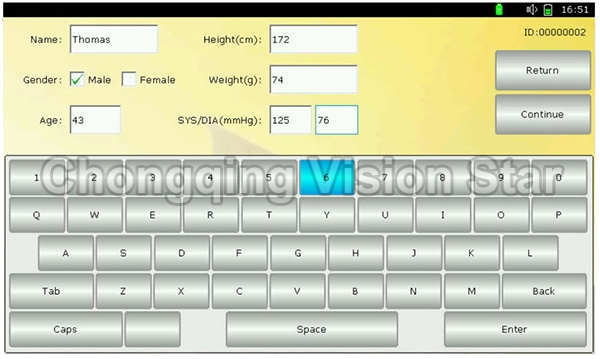

Touch Mode Quick Input

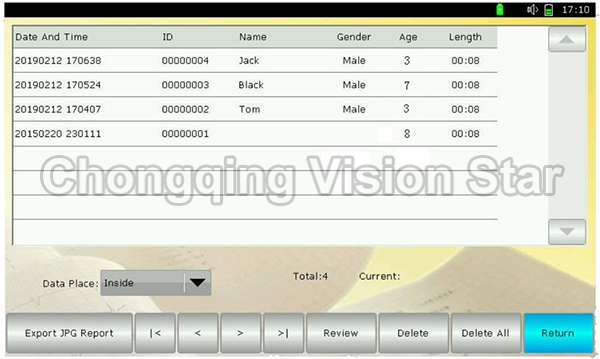

Convenient Setting Unlimited Storage



Technical Data



CMRR

≥100dB, with AC Filter

Input Circuit

Floating,Protection against defibrillator effect

Input Circuit Current

≤0.1 uA

Resolution

12bit/1000Hz

Operation Mode

Manual/Auto

Filter

AC,ECG Filter

Drift Filter

Anti-Drift System

Input Impedance

>50M

Patient Current leakage

<uA

Rated Voltage

100V-230V 50hHz/60Hz

Recording Paper

Thermal Recording Paper

Calibrating voltage

1mV±3%

Voltage Tolerance

±500mV

Time Constant

>3.2s

Frequent Response

0.05Hz~150Hz

Noise Level

≤15uVp-p

Threshold

≤20uV

Paper Speed

12.5mm/s,25,50mm/s(±3%)

Sensitivity

5,10,20mm/mV

Recorder

High resolution thermal printer

Battery

Li-ion battery(11.1V,2200mAh)

Dimension

256*204*66mm
