VSB45L Class B Table-top Autoclave

$0.00

Model: VSB45L
Quantity:

Purchase professional medical equipment for clinic, hospital, or become our distributor. Send an inquiry or contact us now.

Send Inquiry

Chat on WhatsApp: +8613618377608

Visit our ultrasound machine website, to find more products.

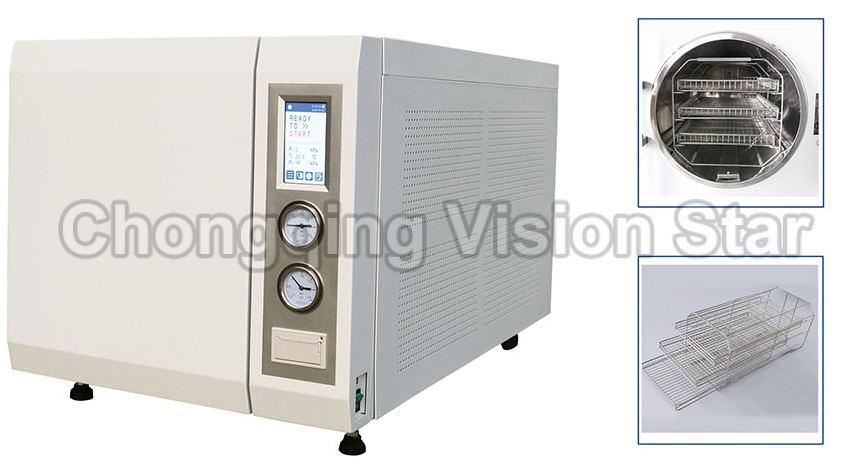

VSB45L Class B Table-top Autoclave

  • * Feature:
  • * Table Top Autoclave Class B Series:
  • As a type of high pressure sterilizer,it takes steam as its sterilization medium which is fast, safe and economic. They are common used in medical health care institution or R&D institution to make the sterilization for wrapped or unwrapped instrument, fabric, utensils, culture medium, unsealed liquid,
  • * Brand-new Operation Interface:
  • The LCD touch screen can display temperature,pressure, time, operating status,error and alarm information, etc.
  • There are different color changes in each stage of steril
  • It is convenient for users to observe the sterilizer running status.
  • More importantly,the fault alarm not only displays the fault code, but also automatically displays the reason analysis and solution.
  • * Multiple Safety Protection Devices:
  • Automatic over-temperature protection device,multiple control and protection of evaporator, door safety interlock protection, double over-pressure protection device,
  • * Mobile Temperature Sensor:
  • The mobile temperature probe can directly detect the internaltemperature of the liquid to ensure the sterilization effect of the liquid.
  • * Automatic Door Structure:
  • Sterilizer adopts automatic door structure,which is fast and convenient tooperate, effectively protects human body and prevents scalding.
  • * Vacuuming System:
  • High efficiency vacuum extraction system,low working noise, over-90kPa extreme vacuum, fast extraction speed, good dryness, more complete sterilization.
  • * A Variety of Programs:
  • There are exposed procedures,packaging procedures,rubber procedures dressing procedures, liquid procedures, liquid customization, solid customization, medium sterilization procedures, B&D testing, vacuum testing and media dissolution procedures.
  • * Other Features:
  • Heating,sterilizing, exhausting and drying totally automatic.
  • Chamber is heated by film heater,saving energy and time.
  • 22um high efficiency air filter,to avoid re-contamination of sterilized materials with filtration efficiency over 99.5%
  • Water filter in tank and chamber are quick to disassemble and easy for cleaning.
  • Built-in stainless steel water tank,inner cycle of steam and water.
  • Standard built-in printer.
  • Standard USB port.
  • Note:It is applicable to the altitude below 3500 meters, and the parts need to be changed when the altitude is over 2000 meters

Technical Data







Capacity

45L

60L

80L

Chamber Size(mm)

316*621

386*520

386*692

Design Pressure

-0.1/0.3MPa





Sterilization Temperature

105°C~134°C





Chamber Material

SUS304





Ambient Temp.

5°C~40°C





Consumption

5.8KW

6.2KW



Power Supply

AC220V, 50Hz (Standard)

AC110/220V, 60Hz (Optional)

Wiring method: Air switch

External Size(W*D*H)mm

610*1020*610

805*940*700

805*1140*700

Package Size(W*D*H)mm

750*1200*880

960*1130*940

960*1330*940

Gross Weight(kg)

165

215

230
