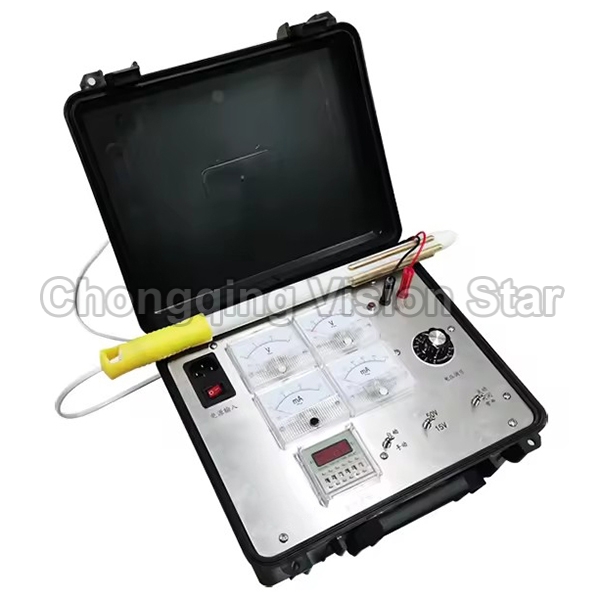

VSC01 Electric Stimulation Sperm Collector

VSC01 Electric Stimulation Sperm Collector

• Feature:
•
• * Assisted sperm collection
• * Multiple models of stimulus rod
• * Applicable to a widerange of animals: It is suitable for most animals, such as cattle, pandas, sheep, deer, rabbits, chickens, guinea pigs, rats, foxes, etc.
•
• Higher Security
• Low voltage and low current alternating current is used to stimulate the lower nerve center of animal sacral cone, so as to achieve the purpose of collecting animal sperm in a safe way.
•

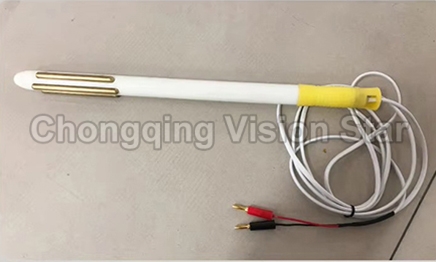

• Extended Copper Head Stimulation Rod
• Professional pure copper probe electronic pulse stimulation, the use of the effect is guaranteed no harm to animals
•

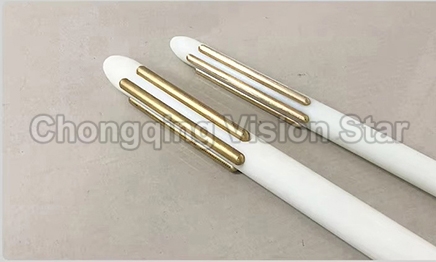

• Multiple Models of Stimulus Rod
• * Suitable for a variety of animals, easy to operate, more portable to use
• * Cattle insertion depth 20-25cm
• * Sheep insertion depth 15-20cm
• * Suitable for cats, rabbits, monkeys and other small and medium-sized animals
• * Rat insertion depth 1-1.5cm
•

•
• Instruction:
• * Insert one end of the power cord into the socket of theinstrument panel, and connect the other end to 220V AC power supply. Insert the two plugs of the stimulation electrode rod connection into the “output”.
• * Before turning on the “power” switch, move the switch atthe lower right corner to the middle “off” state.
• * Power input is off.
• * Select voltage, and select 0-50V voltage output upward; Select 0-15v voltage output downward.
• ★ when the stimulation output current is less than 50mA, select 0 15v voltage output gear.
• ★ when the stimulation output current is greater than 50mA, select the 0-50V voltage output gear.
• * By rotating the “voltage regulation” knob, the stimulationvoltage can be adjusted. Clockwise rotation increases the voltage or current; Rotate counterclockwise and the voltage or current decreases. At this time, the corresponding output voltage value can be seen on the voltmeter.
• * When the instrument is selected as “manual” operation, the “output selection” switch is divided into three gears. In the “inching” state, it is manual operation. When it is moved upward, it is working. After it is released, it automatically returns to the “off” state. When it is operated, the stimulation output time is manually controlled. “Off” is not working. “Normally open” is continuous stimulation and is not
• * After the stimulating electrode rod is inserted into therectum of the animal (the three electrodes face upward to stimulate the sacral nerve), turn the “jog” switch. At this time, the stimulating electrode rod will have output for electrical stimulation.
• * During electrical stimulation, the penis of the male animalhas erectile action, and the operator can timely receive the animal semen in a clean plastic or glass container.
•
