VSI50L Handwheel Type Vertical Autoclave

$0.00

Model: VSI50L
Quantity:

Purchase professional medical equipment for clinic, hospital, or become our distributor. Send an inquiry or contact us now.

Send Inquiry

Chat on WhatsApp: +8613618377608

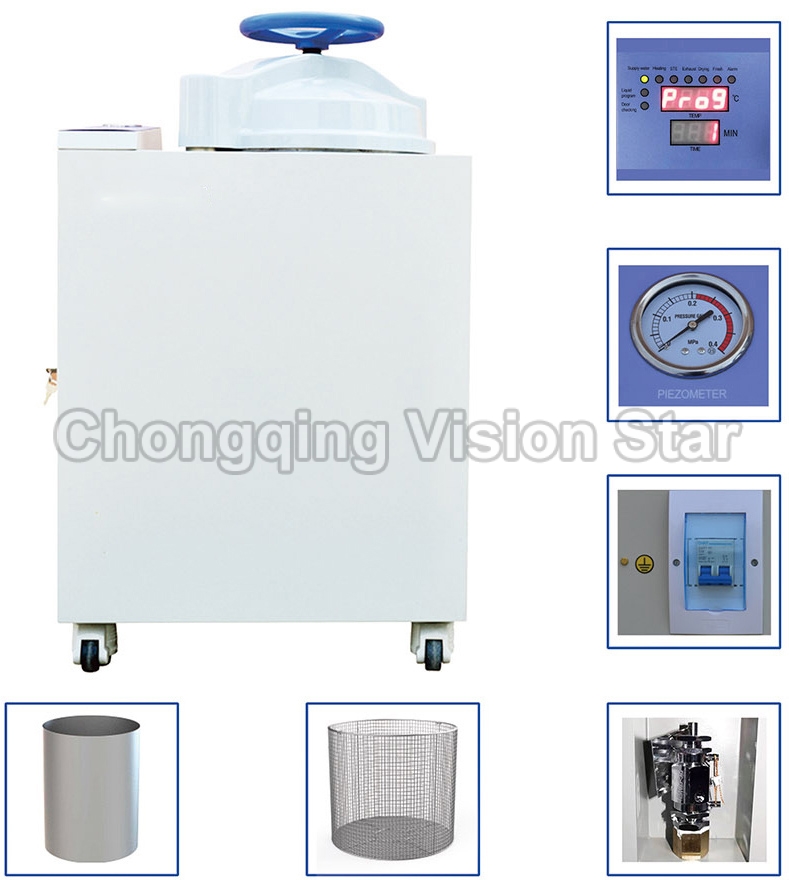

VSI50L Handwheel Type Vertical Autoclave

  • * Application Range:
  • There are 4 fixed programs and 1 DIY programs according to different sterilization objects such as wrapped or unwrapped instrument, rubber, dressing, etc.
  • * Safety Feature:
  • Overtemperature automatic protection device
  • Over-pressure protection measures
  • Door safety detection device
  • Over-current and leakage safety protection
  • Water shortage protection device
  • * Technical Feature:
  • LED screen displays
  • Independent quick service window,easy for repairing and maintenance
  • Audio and visual alarm: anti-dry burning,over-pressure protection,over-temperature protection, power safety protection.
  • Sterilization programs for wrapped or unwrapped instrument,rubber, dressing, etc.
  • Hand wheel translation type door opening,fast and labor-saving.
  • Using single-chip microcomputer control,heating, sterilization, exhaust, fully automatic control, without too much manual operation
  • Adopt gravity displacement and positive pressure pulsation exhaust mode to discharge the load and cold airin the sterilization room.
  • The sterilization chamber and the sterilization basket are made ofhigh-quality stainless steel SUS304, and the interior is polished.
  • Optional sterilization bucket
  • Note: It is applicable to the altitude below 3,000m.

Technical Data









Capacity

50L

75L

100L

120L

Chamber Size(mm)

386*515

386* 695

386*875

386*1055

Chamber Material

S30408

Design Pressure

0.28Mpa

Designed Temp

150°C

Working Pressure

0.23MPa

Working temp.

105~136°C

Temp.Display accuracy

0.1°C

Timing range

0~999min

Dynamic Pulse Exhaust Times

0~9times

Dynamic Pulse Exhaust Temp

105~134°C

Consumption

3.7kW

3.7kW

4.1kW

4.1kW

Power Supply

AC110/220V±10%, 50/60Hz

Standard SS Basket

1pc

2pcs

2pcs

3pcs

Basket Size(mm)

φ365*360

φ365*260*2pcs

φ365*360*2pcs

φ365*360*1pcs

φ365*260*2pcs

External Size(W*D*H)mm

640*550*980

640*550*1080

640*550*1280

640*550*1380

Packing Size(W*D*H)mm

750*745*1100

750*745*1240

750*745*1450

750*745*1540

Gross Weight(kg)

102

115

123

135
