VSZA18L Class B Table-top Autoclave

$0.00

Model: VSZA18L

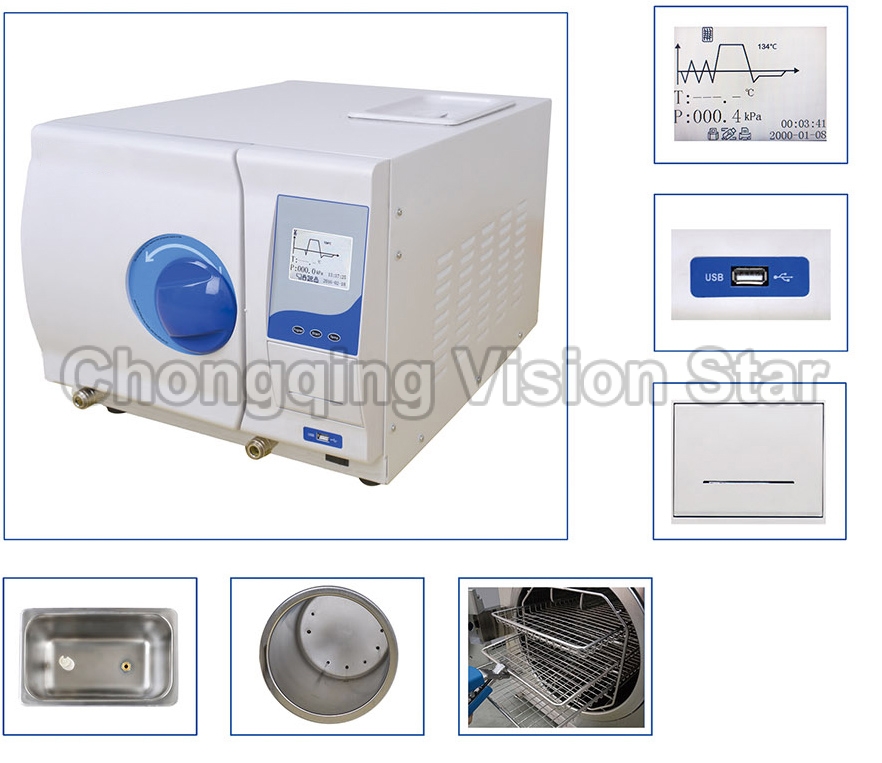

VSZA18L Class B Table-top Autoclave

Feature:
* Built-in Open Type Water tank:
The sterilizer adopts easy-clean open type watertank which can support repeated program running fully injected with
* High-efficiency Ultimate Vacuum:
The sterilizer adopts high-efficiency low noise vacuum system which has excellent effects.
* Large LCD Display:
The LCD screen can display temperature,pressure, time, operating status, failure warning and other information. It is convenient for customers to observe the sterilizer running status.
* Multiple Program Types:
The system has various programs that include packed items,unpacked items, BD testing program, vacuum testing program and drying function.
* Standard USB port.
Users can store the sterilization data with USB disk.
* Optional mini printer can be attached to record the process of sterilization.
* Note: It is applicable to the altitude below 3,500m.

Technical Data
Capacity	18L	23L
Chamber Size(mm)	φ247*360	φ247*470
Sterilization Class	Class B
Sterilization Temperature	121°C, 134°C
Drying System	Vacuum drying system
Display	LCD display
Testing System	B&D Test Vacuum Test Helix Test
Control Precision	Temperature: 1°C Pressure: 0.1bar
Sterilization Data	BKM-Z16B: Printer(optional) BKMZAVBKMZB: USB(standard)and printer(optional)
Safety System	Hand lock door Pressure lock system Relief valve in case of over pressure Pressure or temperature over load protection Alarm for system failure,finish reminding,water level warning
Water Supply System	Build-in water tank easy to clean
Water Tank Capacity	3.5L
Water Consumption	0.16L~0.18L in one cycle
Tray Holder	3pcs SS trays on SS shelf
Chamber	SUS304 Max working pressure: 2.3bar Min working pressure: -0.9bar Design temperature: 140°C
Ambient Temp.	5～40°C
Noise	<65dB
Consumption	1950VA
Power Supply	Standard:220V±10%, 50Hz /60Hz; Optional: 110V±10%, 50Hz/60Hz. Wiring Method: Plug
External Size(WDH)mm	495600410	495700410
Package Size(WDH)mm	610810590
Gross Weight(kg)	63	65
